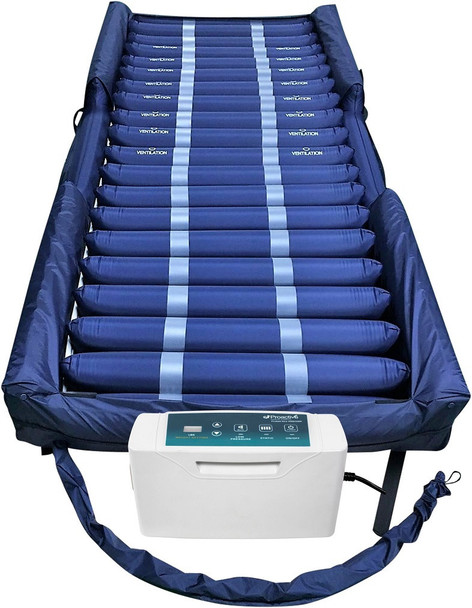

ProtektĀ® Aire 4600DXAB Alternating Pressure Mattress System w/ Cell on Cell Base, Raised Side Bolsters 84600DXAB by Proactive

Proactive Medical | 84600DXAB

Order Below
MSRP: $1,375.00
current price $699.95
ā€” You save $675.05
Free delivery 2-6 business days
Free Shipping
Lowest Price Guarantee
For more details, SEE BELOW

Description

Digital 8 LPM LED pump alternately inflates and deflates air bladders ••• Cell-on-cell design holds air in case of power failure ••• Raised side bolsters helps prevent patient roll out ••• Low air loss helps keep skin cool and dry ••• Digital adjustable LED weight settings allows pressure to be customized ••• Fluid resistant, nylon quilted cover ••• Supports up to 400 lbs. ••• 36" wide and 80" or 84" long

The Protekt® Aire 4600DXAB combines dual therapies of low air loss and alternating pressure in one unit. The 4000DXAB is ideal for patients who require treatment for pressure ulcers stages I-IV. The Protekt® Aire 4600DX pump alternates in 10 minute intervals and the adjustable LED digital air flow touch panel provides custom pressure settings for each patients individual requirements. The Protekt® Aire 4600DXAB mattress unique cell-on-cell design incorporates a one-way valve which will hold air in the 4" of the cells in the event of a power failure. The raised side air bolsters helps prevent patient roll out and the risk of entrapment.

PROTEKT® AIRE 4600DX DIGITAL PUMP FEATURES

  • Digital Pump with Auto Compressor Sleep Technology (ACST)shuts off compressor at desired pressure level extending pump life cycle
  • Digital adjustable LED weight settings allows pressure to be customized according to each patient's therapeutic requirements
  • Pump alternately inflates and deflates air cells in mattress overlay to create different patient support points
  • Provides low air loss and alternating pressure therapies in one system
  • 8 LPM pump alternately inflates and deflates air bladders
  • Low air loss function helps keep skin cool and dry
  • Preset 10 minute alternating cycle time
  • Static function for safe and easy patient transfer
  • Visual low pressure alarm
  • Adjustable hanging brackets
  • Lighted On/Off switch and hanging bed hooks
  • Limited 2 year warranty

MATTRESS & COVER FEATURES

  • Raised side perimeter air bolsters mitigates accidental patient roll-outs, and reduces the risk of entrapment
  • Center cut-out in air bolsters enables safe ingress and egress from the mattress
  • Unique cell-on-cell design incorporates a one way valve which will hold air in the lower 4" of the cells in the event of a power failure
  • 20 individual air bladders
  • Laser holes in air bladders allow low air loss to keep the patient cool and dry
  • Pillow top, static head section prevents head and neck from unnecessary movement during alternating mode
  • Nylon top cover is fluid resistant, anti-microbial/anti-bacterial and quilted for added comfort
  • Transport connector locks in air for easy patient transfers
  • CPR valve provides rapid deflation of mattress
  • Kink resistant tubing
  • Dimensions: 36”W x 80”L x 8"H (11"H sides) or 36"W x 84"L x 8"H (11"H sides)
  • Easy to set up and operate
  • Weight capacity is 400 lbs.
  • Limited 2 year warranty

CLICK HERE FOR OWNER'S MANUAL

To speak with a customer service representative, call 1-800-956-6616

  • Alternating pressure mattress helps prevent and treat pressure sores
  • Cell-on-cell design holds air in case of power failure
  • Raised side air bolsters helps prevent patient roll out
  • Digital 8 LPM pump alternately inflates and deflates air bladders
  • Low air loss function helps keep skin cool and dry
  • Digital adjustable LED weight settings allows pressure to be customized
  • Includes fluid resistant, anti-bacterial, nylon quilted cover
  • 36" wide and 80" or 84" long
  • Supports up to 400 lbs.
Read MoreClose

Specifications

Power Supply: 120 V, 50Hz
Air Output: 8 LPM
Pressure Range: 20 mmHg - 50 mmHg
Cycle Time: 10 min.
Fuse: 250 V, 1 A
Pump Dimensions: 10.6" x 6" x 4"
Pump Weight: 3.5 lbs.
Mattress Dimensions: 80"L x 36"W x 8"H (11"H sides)
84"L x 36"W x 8"H (11"H sides)
Mattress Construction: Top Cover: Quilted Nylon/ PU
Air Cells: 20 ea (80"L), Nylon/ PVC w/ Cell-on-Cell Base
11"H Side Air Bolsters
Botton Cover: Nylon/ PVC
Weight Capacity: 400 lbs.
Limited Warranty: Pump: 2 years
Mattress: 2 years
Read MoreClose

Additional Information

Mattress Features:
Alternating Pressure
Mattress Features:
Low Air Loss
Mattress Features:
Raised Sides
Mattress Height:
8"
Mattress Width:
35" - 36"
Mattress Length:
80"
Mattress Length:
84"
User Weight:
Up to 400 lbs.
Pump Flow Rate:
8 - 12 lpm
Pump Features:
Digital Display
