Description

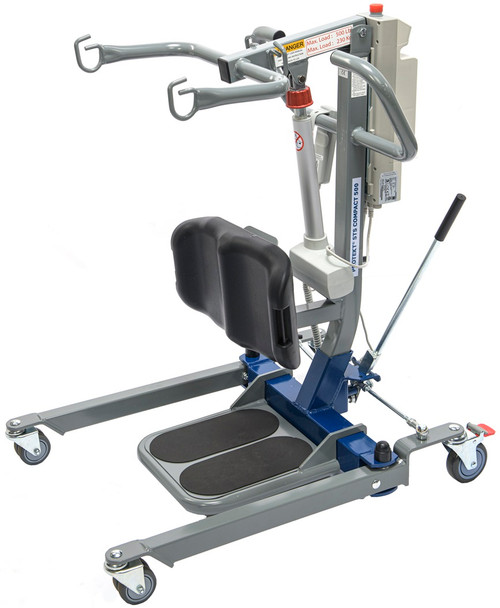

The Protekt® STS Compact 500 Patient Lift is a user friendly, durable, and affordable sit-to-stand lift. It is extremely compact and easy to maneuver and transport anyone 500 lbs. or under. It has a low base height of 4.9” which is ideal for sliding under most furniture or chairs. Using a manual lever, the base can easily open to allow wheelchair or toilet entrance.
The Protekt 34500-COM allows the patient to be lifted and transferred safely with minimal physical effort provided by the operator. The 34500-COM uses an electric actuator to lift patients from a sitting to a standing position from either a bed or chair for transferring. The lift has a standing platform to be used while transferring the patient from one surface to another, also included is a cushioned knee pad for additional comfort and support.
The STS Compact 500 sit to stand lift is intended for patients who are lacking leg strength in their lower extremities but are still able to bear weight. It is designed to assist with standing from a seated position while using a toilet/commode, changing clothes and/or to relieve pressure. The 34500-COM is intended to have one caregiver operate the lift to perform the transfer.
The performance class actuator includes an emergency quick release in case of a power outage.
Features & Benefits
- Extremely compact and easy to maneuver and transport
- Low base height of only 4.9" for sliding under most furniture
- Allows patient to be lifted and transferred safely with minimal effort
- Adjustable height and depth, cushioned knee pad for added comfort
- Large, removable foot plate
- Intended for patients who lack leg strength in their lower extremities but are still able to bear weight on their legs
- Designed to assist with standing from a seated position
- Electric actuator includes emergency quick release and manual operation in case of power outages
- Built-in battery gauge
- LCD display control panel
- Swivel casters include two locking swivel casters
- Weight capacity: 500 lbs.
- Warranty:
- Electronics; 2 Year.
- Frame; 3 Year.
- Battery; 1 Year.
Available Accessories (view in images above)
- Patient slings in multiple styles and sizes
- Sit to stand slings - for patients with at least 60% weight bearing capacity, lift user to an almost full standing position
- Transfer slings - for patients with minimal weight bearing capacity, lift user to a semi standing position
- Padded sit to stand slings - offer more comfort for those with at least 60% weight bearing capacity
- Battery and external battery charger kit - allows you to charge one battery while using other battery on lift
- Battery and external battery charger kit includes:
- 1 each Protekt battery pack LP-TC12-BPAK
- 1 each Protekt external battery charger cradle with power cord LP-TBC2-CRDL-PK
Manufacturer Resources
To speak with a customer service representative, call 1-800-956-6616
- Extremely compact and easy to maneuver
- Hand control operates boom up and down
- Manual lever adjusts width of base legs
- Emergency stop and manual lowering
- Adjustable padded knee support
- Battery and charger included
- Multiple sling options available
- Lifts patients up to 500 lbs.
Specifications
| Boom Height (at sling hookup): | 37" - 59.1" |
| Mast Height: | 40" |
| Base Height (clearance): | 4.9" |
| External Base Width: | 24.9" - 37.1"" |
| Internal Base Width: | 19.9" - 32.1" |
| Base Length: | 33.5" |
| Casters: | Front: 3" swivel Rear: 4" swivel locking |
| Knee Pad Depth Range: | 4" |
| Footplate to top Knee Pad: | 19", 20" or 21" |
| Footplate Dimensions: | 13.9"W x 14.4"L |
| Turning Diameter: | Base Opened: 45" Base Closed: 41.9" |
| Input Voltage: | 110 - 120 VAC, 60 Hz |
| Output Voltage: | 24 VDC |
| Battery Pack: | 24 VDC, 5 AH |
| Sound Level: | Full Load: 16 db No Load: 11 db |
| Lifts Per Charge: | Up to 25 full cycles under full load |
| Product Weight: | 111 lbs. |
| Weight Capacity: | 500 lbs. |
| Limited Warranty: | Frame: 3 years Electronics: 2 years Battery: 1 year |
