Description
Digital 9 LPM pump alternately inflates and deflates air cells ••• Cell-on-cell bladder structure provides consistent support ••• Digital pump with seat inflate, static, max firm and adjustable pressure and cycle times ••• Low air loss helps keep skin cool and dry ••• Supports up to 450 lbs. ••• Mattress dimensions: 35"W x 80"L x 8"H

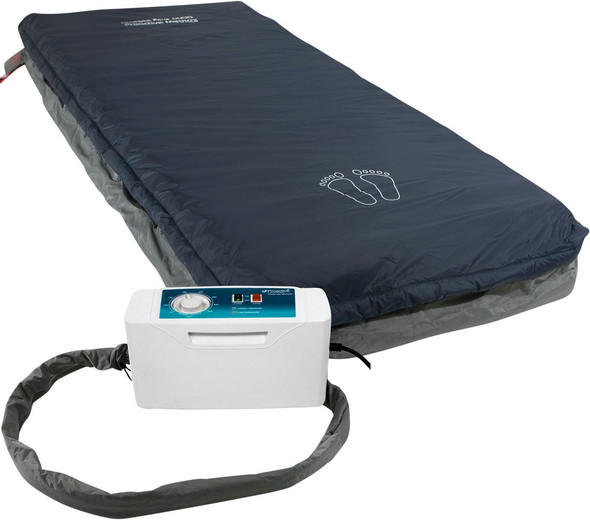

The SoftCaire DX deluxe mattress system and pump is intended to reduce the incidence of pressure ulcers while optimizing patient comfort. The mattress consists of square cell-on-cell air bladder construction which is a unique two-layer cell structure providing both alternation therapy and constant support in case of power outage or transportation. The additional spring-loaded air tubes feature springs emplaced within the air tubes to prevent unnecessary bending of tubes and ensure consistent airflow.
Pump Features:
- Pump alternately inflates and deflates air cells in mattress
- Provides low air loss and alternating pressure therapies in one system
- 9 LPM digital pump alternately inflates and deflates air bladders
- Low air loss function helps keep skin cool and dry
- Adjustable cycles times and pressure for individual comfort
- Max firm mode for easier patient transfers on and off the mattress
- Digital pump display control includes static, max firm and seat inflate modes
- CPR function allows rapid deflation in case of medical emergencies
- Limited 18 month warranty
Mattress Features:
- Pillow function of three fully inflated static air cells (non-alternating) at the head end provides patient comfort
- Quick connector with cap ensures mattress remains inflated during power outage or patient transport
- Cell-on-cell air bladder structure provides both alternation therapy and constant support in case of power outage or transportation
- Spring-loaded tubes emplaced within air cells to prevent unnecessary bending of tubes and ensure consistent airflow
- Overall inflated mattress dimensions: 35"W x 80"L x 8"H
- Nylon, polyurethane quilted top cover with zipper that is water resistant, vapor permeable and anti-bacterial
- Limited 18 month warranty
- Supports up to 450 lbs.
CLICK HERE FOR OWNER'S MANUAL
To speak with a customer service representative, call 1-800-956-6616
- 9 LPM pump alternately inflates and deflates air cells
- Low air loss helps keep skin cool and dry
- Digital controls includes static, max firm, seat inflate modes
- Adjustable cycle times and pressure ranges
- Cell on cell bladders for consistent support and therapy
- Supports up to 450 lbs.
Specifications
| Power Supply: | 120 V, 60Hz |
| Fuse Rating: | 250 V, 1 A |
| Air Output: | 9 LPM |
| Pressure Range: | 20 mmHg - 55 mmHg |
| Cycle Time: | 10/15/20/25 min. |
| Power Cord Length: | 14'9" |
| Pump Dimensions: | 12.2" x 4.9" x 8.25" |
| Pump Weight: | 5.5 lbs. |
| Mattress Dimensions: | 80"L x 35"W x 8"H |
| Air Cell Structure: | 20 x 8"H Cell on Cell |
| Mattress Construction: | Cover: Nylon/ PU, Quilted w/ Zipper Air Cells: Nylon/ TPU, 8"H x 20 each Base: Durable Nylon/ PVC 840D |
| Operating Temperature: | 50°F - 95°F |
| Operating Humidity: | 20% - 80% non-condensing |
| Storage Temperature: | 5°F - 122°F |
| Flame Retardant: | BS6807 Crib 5/ BS7175 Crib 5 |
| Weight Capacity: | 450 lbs. |
| Limited Warranty: | Pump: 18 months Mattress: 18 months |
Additional Information
Mattress Features: |
Alternating Pressure |
Mattress Features: |
Low Air Loss |
Pump Features: |
Auto Firm |
Pump Features: |
Digital Display |
Pump Features: |
Seat Inflate |
Mattress Height: |
8" |
Mattress Width: |
35" - 36" |
Mattress Length: |
80" |
User Weight: |
400 - 500 lbs. |
Pump Flow Rate: |
8 - 12 lpm |
